🧪 Silicon Alchemy
The AI Engine of Global Physical Discovery
Silicon dreams bloom—
atoms gossip in the dark,
matter learns itself.
With every article and podcast episode, we provide comprehensive study materials: References, Executive Summary, Briefing Document, Quiz, Essay Questions, Glossary, Timeline, Cast, FAQ, Table of Contents, Index, Polls, 3k Image, Fact Check, Comic and
Street Art at the very bottom of the page.
Soundbite
Trailer
Essay
There is a piece of carbon sitting in a lab at the University of Toronto that defies common sense. It rests on a soap bubble. It does not pop the bubble. It is lighter than styrofoam and five times stronger than aerospace-grade titanium. It should not, by any honest reckoning, exist. And yet here it is — born not from centuries of trial-and-error chemistry, not from some brilliant researcher’s midnight flash of intuition, but from a single afternoon’s work by a neural network that learned to think in atoms.
We are living inside a paradigm shift so large that most of us cannot yet see its edges.
For fifty years, the global community of computational chemists — brilliant, caffeinated, dedicated people hunched over supercomputers in laboratories from Berkeley to Tokyo — had collectively mapped approximately 48,000 stable crystalline materials. Forty-eight thousand. That number represented humanity’s entire palette for building everything from solar panels to computer chips to electric vehicle batteries. Five decades of work. Thousands of careers. The full institutional weight of modern materials science.

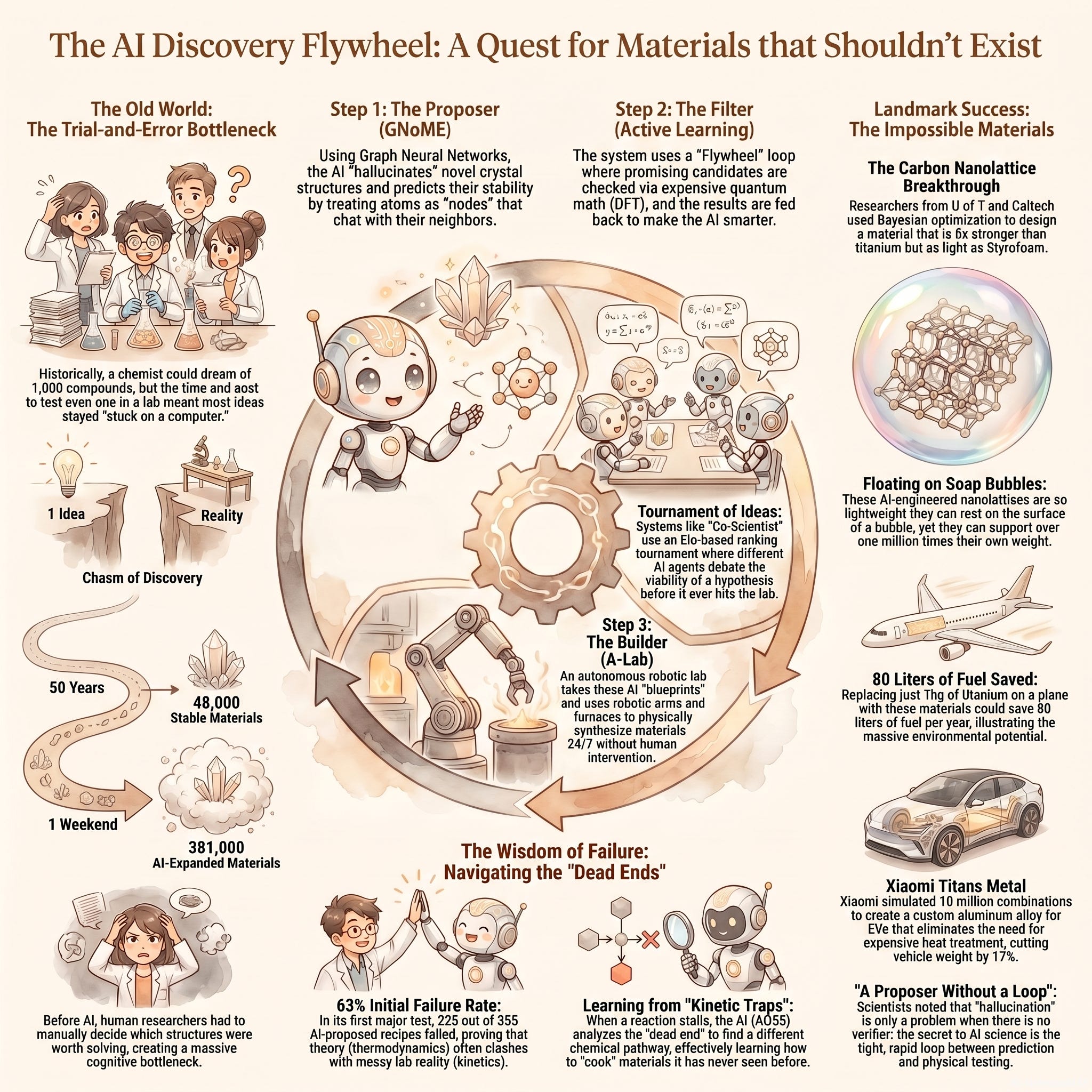

In a single weekend of computing, a graph neural network called GNoME added 381,000 more.
This is the kind of number that should make you set down your coffee and sit quietly for a moment.
I want to be careful here, because I am aware of the trap I am walking toward. I have read the breathless technology journalism. I know how easily “AI revolutionizes X” becomes the signal that a piece was written by someone who did not engage with the source material. So let me be precise: GNoME did not discover 381,000 new materials in the way a geologist discovers a new mineral. It predicted — with exceptional and verified mathematical precision — that these crystal structures should be thermodynamically stable. The distinction matters enormously. But so does this: the Materials Project at Lawrence Berkeley National Laboratory is verifying these predictions, and early results are deeply compelling.
The deeper story, though, is not about the number. It is about the nature of the bottleneck that just broke.
The story of human civilization is, in large measure, the story of materials. Bronze Age. Iron Age. Silicon Age. Each era named for the substance that unlocked it. And in every era, the process of discovery has been essentially identical: mix things together, heat them, observe what happens, and write it down. Alchemy in different clothes. Millennia of patient, painstaking fumbling toward understanding.
The bottleneck was always physics. To know whether a proposed crystal structure would actually be stable — whether it would sit peacefully at the bottom of its energy valley rather than crumbling into something simpler — you needed to run density functional theory calculations. DFT is a heroic mathematical attempt to solve quantum mechanics for systems with many interacting electrons. It requires massive supercomputing resources just to verify one proposed material. One. You could not brute-force your way through chemical space because chemical space is, for practical purposes, infinite.
GNoME bypassed this by learning the underlying grammar of structural chemistry. Rather than solving the quantum equations from scratch, the neural network learned to predict their outcomes millions of times faster. It acts as a triage system — rapidly filtering millions of candidates and sending only the most promising to the supercomputers for expensive verification. And crucially, every time the supercomputers confirmed or refuted a prediction, that information fed back into the model, tightening its intuition toward physical reality.
The model improved by failing. In other words, it became more scientific.
What interests me more than the raw numbers is what happens when the theoretical meets the physical. A crystal that exists only as a digital prediction on a server does not build a better electric vehicle battery. It does not cool a supersonic aircraft wing. It does not help a child breathe cleaner air.
That is where the Autonomous Lab — the A-Lab at Lawrence Berkeley — enters the story. A robotic facility that took GNoME’s predictions and spent seventeen days, twenty-four hours a day, attempting to physically synthesize fifty-eight novel materials that had never existed in human history. No recipe books. No prior synthesis literature. No graduate student’s accumulated intuition to fall back on.
It succeeded with forty-one of them.
What moves me about the A-Lab story is not the seventy-one percent success rate, impressive as it is. It is what happened with the failures. The robot failed, in one case, because phosphorus simply evaporated before it could react — a physical reality the theoretical models had not accounted for. In another case, the AI’s foundational calculations were simply wrong; the human physics equations that trained it had underestimated the stability of a simpler competing compound. The autonomous system exposed a blind spot in human mathematical physics.
The machine corrected the theory. Not by being smarter, exactly — but by being relentlessly, patiently empirical in a way that human researchers, constrained by time and funding and the limits of institutional patience, rarely get to be.
I want to be honest about the anxiety this creates, because pretending it does not exist would be a failure of intellectual honesty.
If an AI can design a material, and a robot can synthesize it, and another AI can verify the crystallography by generating the expected X-ray fingerprint in advance — where does the human researcher fit? The question lands differently depending on who is asking. For the graduate student who might have spent eighteen months attempting to synthesize a single material that the robot could produce in three days, it is not abstract. It is a question about their life’s work.
But here is what the literature actually says, and what I find genuinely convincing: the AI has no idea what it should care about. It does not know that ALS is devastating, or that clean energy is urgent, or that making aircraft lighter might spare measurable tons of atmospheric carbon over a fleet’s lifetime. It has no stakes in the physical world. Professor Mary Ryan put it well: science is a team sport, and the AI is simply the newest, most capable player — but it needs the team to tell it what the game is.
The human provides the why. The AI provides the how.
That is not a consolation prize. The why is the entire point.
Outside the aircraft hangars and reactor facilities, something less dramatic but perhaps more culturally significant is unfolding. The architecture of science itself is shifting. Human researchers who once spent years navigating experimental dead ends — designing experiments, synthesizing materials, running tests, obtaining inconclusive results, and beginning again — are now being handed something unprecedented: the ability to map the minefield before stepping into it.
Google’s Co-Scientist system functions as a digital boardroom. One AI agent reads the literature — not dozens of papers, but millions. Another writes code to run computational simulations. A third plays adversarial peer reviewer, stress-testing proposed hypotheses for logical flaws and physical implausibility before a single dollar is spent in a physical lab. Researchers studying ALS, zoonotic disease spillover, and cellular biology have all described the same experience: months of hypothesis generation and literature synthesis compressed into days.
We are not approaching the end of science. We are approaching a version of science in which the drudgery of the combinatorial search — the endless, numbing, necessary sifting — is handed to algorithms, freeing human minds to do what algorithms cannot: decide what matters, and why, and to whom. To feel, in the proper sense, the weight of a discovery.
That piece of carbon floating on its soap bubble is not a symbol of machines outpacing us. It is a symbol of what becomes possible when we stop forcing human minds to spend their finite years doing work that could be done in an afternoon by something that never needs to sleep, never loses hope, and never once wonders whether the whole project is worth it.
The algorithms do not wonder. We do. And that wondering — that irreducible, inefficient, beautiful human curiosity — is what makes the whole enterprise matter.
The map of the stable world is essentially complete. The map of the dynamic world, the chaotic and reactive systems that give rise to energy generation and complex chemistry and perhaps the underlying mechanics of life itself — that map is just beginning.
We made it to the trailhead. The view from here is extraordinary.
Heliox is produced by Michelle Bruecker and Scott Bleackley. This podcast uses AI-generated synthetic voices for a material portion of the audio content, in line with Apple Podcasts guidelines. We make rigorous science accessible, accurate, and unforgettable. Independent, moderated, timely, deep, gentle, clinical, global, and community conversations about things that matter. Breathe easy — we go deep and lightly surface the big ideas. helioxpodcast.substack.com
Link References
Scaling deep learning for materials discovery
Co-Scientist: A multi-agent AI partner to accelerate research - Google DeepMind
Disposal EVs? Xiaomi’s “Aluminum Replacement” Isn’t What You Think - EVWorld.com
Towards Agentic Intelligence for Materials Science - arXiv
AI for Scientific Discovery is a Social Problem - arXiv
google-deepmind/materials_discovery - GNoME - GitHub
AI Reveals New Way to Strengthen Titanium Alloys and Speed Up Manufacturing
AI is doing something weird to Science - The Computist Journal
Advancements in Two-Photon Polymerization (2PP) for Micro and Nanoscale Fabrication
Episode Links
Apple Podcast
Youtube
Available for broadcast on PRX
PRX Series
Other Links to Heliox Podcast
YouTube
Substack
PRX ( Public Radio Exchange)
Podcast Providers
Spotify
Apple Podcasts
Patreon
FaceBook Group
STUDY MATERIALS
Executive Summary
The pharmaceutical industry is undergoing a fundamental strategic shift from “heroic, high-stakes discovery” to systematic, data-driven reinvention. Traditional drug development is currently hampered by “Eroom’s Law”—a phenomenon where R&D productivity halves every nine years, resulting in average costs of $2.6 billion and timelines of 10 to 15 years per approved drug. In response, a surge of artificial intelligence (AI) startups and computational platforms is attempting to “demultiply the axes of discovery.”
Key takeaways from current industry analysis include:
The Rise of AI Startups: Since 2023, hundreds of AI-focused biotech firms have emerged. High-profile entities like Xaira Therapeutics (launched with $1B in 2024) and the merger of Recursion and Exscientia in 2025 signify massive capital concentration in the sector.
Efficiency Gains: AI platforms have demonstrated the ability to shorten iterative chemistry cycles from 4–5 years to approximately 15 months (Exscientia) and reduce the number of compounds requiring synthesis by up to 90%.
The Repurposing Revolution: Systematic computational screening of existing drugs for new indications—drug repurposing—now accounts for approximately 30% of newly marketed drugs in the U.S. This pathway reduces costs to ~$300 million and timelines to roughly 6 years.
Clinical Proof-of-Concept: In June 2025, Insilico Medicine reported the industry’s first proof-of-concept clinical validation for an AI-designed drug, Rentosertib, which showed significant improvement in lung function for Idiopathic Pulmonary Fibrosis (IPF) patients in Phase IIa trials.
Structural Risks: Despite these advances, as of mid-2025, no AI-discovered drug has yet reached the market. The field faces challenges in data quality, regulatory hurdles, and a high attrition rate in “hard” repurposing (moving drugs across different therapeutic areas).
--------------------------------------------------------------------------------
I. The Crisis in Traditional Pharmaceutical R&D
The traditional “bench to bedside” model is increasingly viewed as economically unsustainable due to three primary factors:
Extreme Attrition: Roughly 90% of drug candidates entering clinical trials fail. Only ~12% of novel compounds move from Phase I to approval.
Escalating Costs: Capital costs for a single success average $1.3 billion, but the total “all-in” cost per approved drug reaches $2.6 billion when accounting for the cost of portfolio failures.
Extended Timelines: Developing a novel chemical entity (NCE) takes an average of 12–15 years, with only ~30% of molecules cleared in Phase I reaching Phase III.
--------------------------------------------------------------------------------

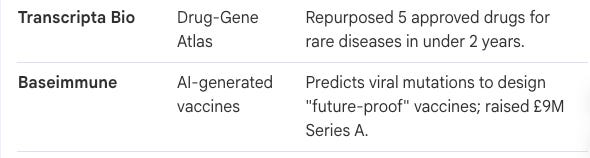

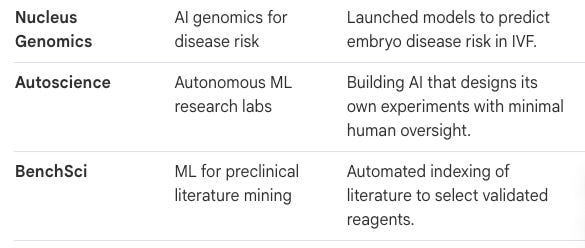

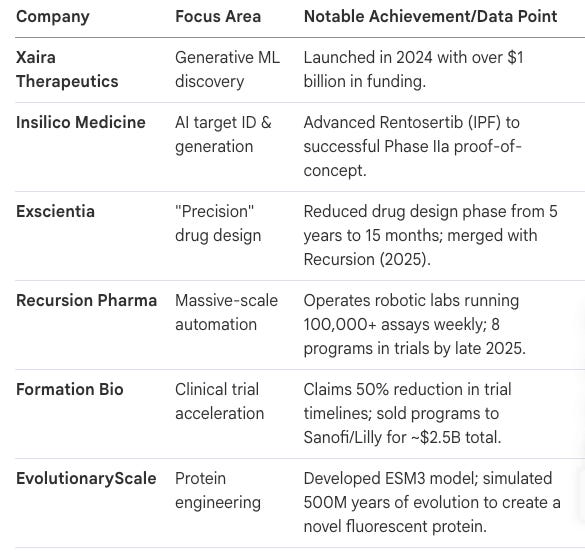

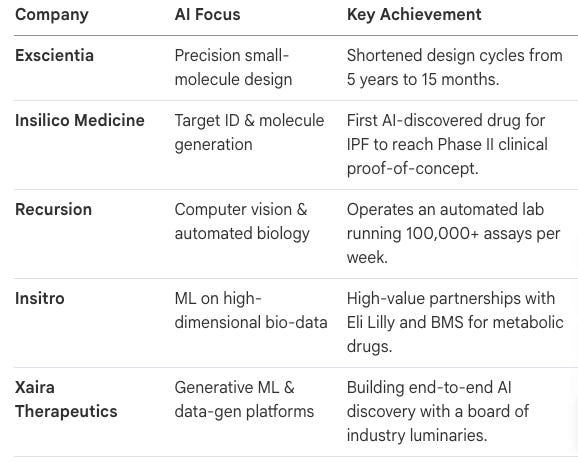

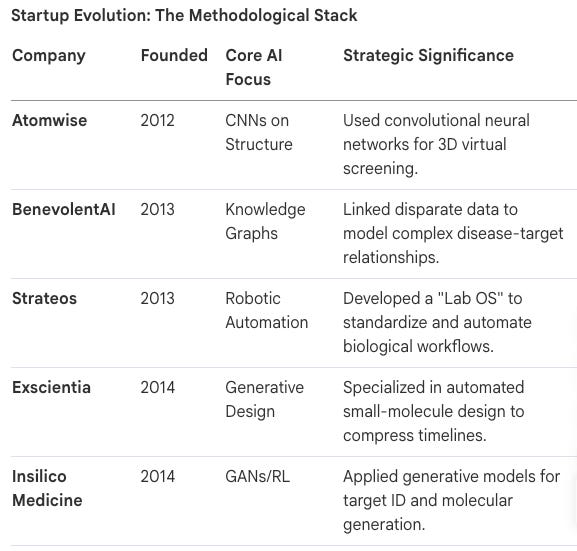

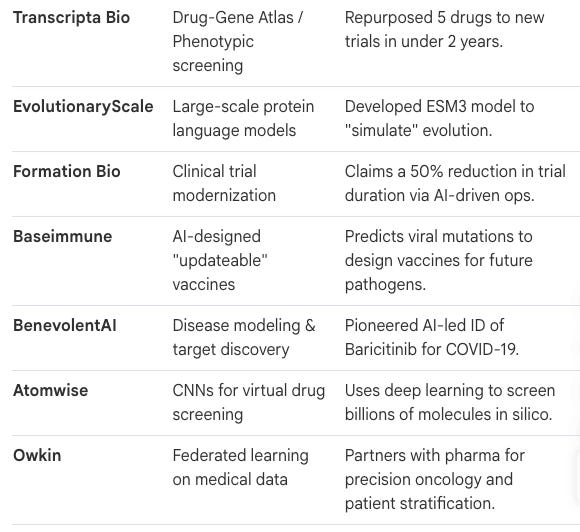

II. Leading AI Startups and Industry Movements
The sector is defined by a diverse array of startups targeting different bottlenecks in the R&D pipeline.
--------------------------------------------------------------------------------
III. Strategic Framework: Drug Repurposing
Drug repurposing involves identifying new therapeutic uses for compounds that have already cleared at least one stage of human evaluation.

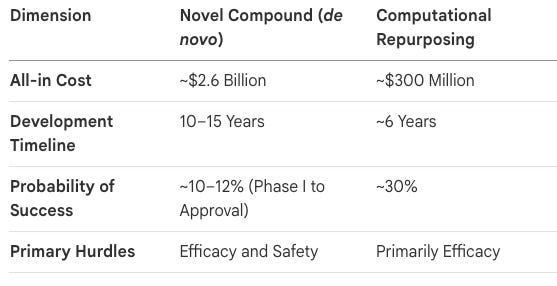

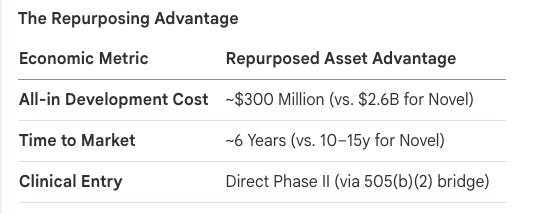

Economic and Success Metrics
Cost Advantage: Repurposing costs approximately 300million∗∗perdrug,comparedto∗∗2.6 billion for novel discovery.
Probability of Success: The probability of market approval for a repurposed drug is approximately 30%, triple the success rate of novel entities.
“Soft” vs. “Hard” Repurposing:
Soft Repurposing: Expanding use within the same therapeutic area (e.g., breast cancer to ovarian cancer) has a 67% success rate.
Hard Repurposing: Moving a drug to a completely different therapeutic area has a success rate as low as 9% for failed drugs and 33% for approved ones.
The Role of Intellectual Property (IP)
Repurposing necessitates a “secondary patent strategy” because composition-of-matter patents are often expired or nearing expiration.
Exclusivity Towers: Companies use method-of-use, formulation, and dosing regimen patents to build new exclusivity.
Orphan Drug Designation (ODD): A critical tool for rare diseases, ODD provides 7 years of U.S. market exclusivity regardless of patent status.
Patent Thickets: Large firms build dense webs of secondary patents (e.g., AbbVie’s 250+ applications for Humira) to deter generic competition.
--------------------------------------------------------------------------------
IV. Technical Methodologies and the AI Roadmap
The transition from “serendipity to strategy” is powered by four generations of machine learning:
Generation 1 (2005-2015): Classical ML (SVMs, Random Forests) using hand-engineered molecular fingerprints.
Generation 2 (2015-2020): Deep Learning (CNNs and Graph Neural Networks) applied to raw molecular graphs, enabling better “scaffold hopping.”
Generation 3 (2020-2024): Transformer models (ESM series) and multi-modal integration of chemical, genomic, and clinical data.
Generation 4 (2024-Present): Biological Foundation Models (scGPT, scFoundation) and causal inference to predict cell-type-specific responses.
Key Computational Approaches
Disease-Centric: Using tools like the Connectivity Map (CMap) and LINCS to match drug-induced gene expression signatures against disease signatures to find “inverse” matches.
Target-Centric: Utilizing AlphaFold2 (200M+ protein structure predictions) for virtual screening and molecular docking.
Network Biology: The “Network Proximity Hypothesis” suggests that a drug is effective if its targets cluster in the same network neighborhood as disease-associated genes.
--------------------------------------------------------------------------------
V. Clinical and Economic Case Studies
1. Rentosertib (Insilico Medicine)
Mechanism: Novel TNIK inhibitor for Idiopathic Pulmonary Fibrosis (IPF).
Outcome: Phase IIa trial showed a mean lung function (FVC) improvement of +98.4 mL, compared to a -20.3 mL decline in the placebo group.
Efficiency: Discovered and designed in only 12–18 months, requiring the synthesis of only ~80 molecules.
2. Baricitinib (Eli Lilly/BenevolentAI)
Mechanism: Originally a JAK1/JAK2 inhibitor for rheumatoid arthritis.
AI Insight: BenevolentAI identified its effect on AAK1, a regulator of viral entry, in early 2020.
Outcome: Repurposed for COVID-19 at pandemic speed because Phase I safety data was already established.
3. Sildenafil (Pfizer)
Evolution: Originally an angina candidate, repurposed as Viagra (erectile dysfunction), then as Revatio (Pulmonary Arterial Hypertension).
Strategic Impact: The Revatio program created a second “exclusivity tower” through ODD and PAH-specific dosing patents, reaching $400M in peak annual revenue even after the primary Viagra patents expired.
--------------------------------------------------------------------------------
VI. Current Challenges and Barriers
The Translation Gap: Fewer than 10% of prospective computational repurposing predictions generate a positive Phase II signal. The primary failure mode is inadequate target exposure in specific tissues at tolerable human doses.
Data Bias: Public databases (ChEMBL, DrugBank) are biased toward well-studied families like kinases and GPCRs, causing AI models to underperform on underexplored biology.
Label Arbitrage: Even with a valid method-of-use patent for a new indication, generic manufacturers can capture the market if physicians prescribe the original generic version off-label.
Regulatory Scrutiny: The FDA has shown a willingness to withdraw Accelerated Approvals if confirmatory Phase III trials fail, increasing the risk for oncology-focused AI programs.
--------------------------------------------------------------------------------

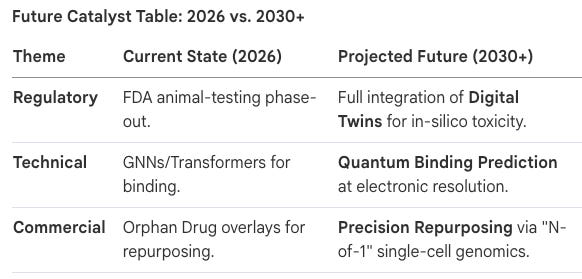

VII. Future Directions
The industry is moving toward “Precision Repurposing,” where AI identifies molecularly defined patient subgroups likely to respond to a known drug. This involves:
Companion Diagnostics: Pairing a drug with a biomarker test to create a more defensible IP position.
Single-Cell Resolution: Integrating the Human Cell Atlas to move from “bulk” tissue analysis to cell-type-specific drug perturbation predictions.
Federated Learning: Utilizing privacy-preserving frameworks like PCORnet to mine hundreds of millions of Electronic Health Records (EHR) for repurposing signals without transferring patient data.
Quantum Computing: A horizon technology (estimated for 2030s) that may eventually allow for full electronic-structure resolution of drug-target binding.
Quiz & Answer Key
Instructions: Answer each of the following ten questions in 2–3 sentences.
How do the costs and timelines of de novo drug discovery compare to those of drug repurposing?
Explain the concept of “Eroom’s Law” as mentioned in the text.
What is the difference between “soft” and “hard” drug repurposing?
How does the 505(b)(2) NDA pathway facilitate the drug repurposing process?
Describe the role of the Connectivity Map (CMap) in disease-centric repurposing.
What is a “patent thicket,” and how does it serve as a strategic barrier to entry?
Why is “Time-split validation” considered a critical methodological standard for evaluating AI repurposing models?
How did Baricitinib’s established safety profile impact its repurposing for COVID-19?
Define “Markush Structure” and its utility in pharmaceutical patents.
What were the significant findings of Insilico Medicine’s Phase IIa trial of Rentosertib for Idiopathic Pulmonary Fibrosis (IPF)?
--------------------------------------------------------------------------------
Answer Key
Costs and Timelines: De novo discovery typically costs approximately $2.6 billion and takes 10–15 years, with a success rate of about 10%. In contrast, drug repurposing averages a cost of $300 million and a timeline of 6 years, with a success rate closer to 30% because it leverages existing safety and toxicology data.
Eroom’s Law: This term describes the phenomenon where the number of new drugs approved per billion dollars of R&D spending has halved roughly every nine years. It is essentially “Moore’s Law” in reverse, highlighting the declining productivity and increasing expense of traditional pharmaceutical innovation.
Soft vs. Hard Repurposing: Soft repurposing involves expanding a drug’s use within the same therapeutic area (e.g., moving from breast cancer to ovarian cancer), which has higher success rates. Hard repurposing involves finding entirely new uses in different disease settings (e.g., a cardiovascular drug for a neurological condition), which is more ambitious but significantly riskier.
505(b)(2) NDA: This regulatory pathway allows an applicant to rely on existing safety and efficacy data from previously approved “listed drugs” or published literature. It streamlines development by reducing the need for new Phase I safety studies, allowing sponsors to move directly to Phase II or III.
Connectivity Map (CMap): CMap is a database of gene expression signatures produced by thousands of small molecules. In disease-centric repurposing, researchers look for a drug that induces a transcriptional profile opposite to the disease’s signature, suggesting the drug can pharmacologically reverse the disease state.
Patent Thicket: A patent thicket is a dense web of overlapping intellectual property rights (secondary patents covering formulations, manufacturing, or new uses) built around a single drug. It deters generic competition by creating a litigation landscape that is too costly and time-consuming for competitors to navigate.
Time-split Validation: This standard requires an AI model to be trained on drug-disease associations known before a specific date and then tested on those discovered afterward. It prevents “data leakage,” ensuring the model can truly predict novel associations rather than simply recalling information it has already seen.
Baricitinib for COVID-19: Because Baricitinib already had a full safety data package from its rheumatology indication, it was able to bypass Phase I testing during the pandemic. This enabled the repurposing program to move directly into Phase III trials under NIAID sponsorship, reaching patients much faster.
Markush Structure: This is a claim-drafting convention that allows a patent to define a broad class of related molecules using a common chemical scaffold with variable components at specific positions. It allows inventors to protect a wide family of compounds without listing every single individual molecule.
Rentosertib Findings: The GENESIS-IPF trial showed that Rentosertib (a TNIK inhibitor) was safe and manageable for patients. Most significantly, patients receiving a 60 mg dose showed a mean lung function improvement of +98.4 mL (measured by Forced Vital Capacity), compared to a decline in the placebo group, marking a major milestone for AI-discovered drugs.
Essay Questions
Instructions: Select one of the following topics and develop a comprehensive essay based on the source context.
The Economic Imperative of Repurposing: Analyze how the pharmaceutical industry uses drug repurposing as a countermeasure to “Eroom’s Law.” Discuss the financial advantages, the role of de-risked assets, and how this strategy impacts the development of treatments for rare and neglected diseases.
The Evolution of AI Methodology: Discuss the four generations of machine learning in pharmaceutical R&D described in the text. Compare and contrast classical ML molecular descriptors with modern biological foundation models like scGPT and scFoundation.
Intellectual Property and Lifecycle Management: Examine the strategic use of secondary patents and “evergreening” in the pharmaceutical sector. Evaluate the legal hurdles of novelty and non-obviousness that repurposed drugs must overcome, and the role of “unexpected results” in securing new patents.
The Regulatory Landscape: Compare the various regulatory incentives available for repurposed drugs, including the 505(b)(2) pathway, Orphan Drug Designation (ODD), and Breakthrough Therapy Designation. How do these tools collectively influence a company’s commercialization strategy?
Precision Repurposing and the Future: Explore the convergence of computational repurposing with precision medicine. Discuss how single-cell genomics, the Human Cell Atlas, and federated learning are moving the field toward “N-of-1” repurposing tailored to individual patient biology.
Glossary of Key Terms
505(b)(2) NDA
A regulatory pathway allowing an NDA applicant to rely on safety and efficacy data not generated by the sponsor, often accelerating the approval of repurposed drugs.
AlphaFold2
A deep learning system developed by DeepMind that predicts the 3D structures of proteins; it has expanded the tractable target space for drug discovery.
AUPR
Area Under the Precision-Recall Curve; a metric used to evaluate AI models, particularly informative when positive data points are sparse.
Breakthrough Therapy Designation (BTD)
A process designed to expedite the development and review of drugs intended to treat serious conditions where preliminary clinical evidence shows substantial improvement over available therapy.
Eroom’s Law
The observation that drug discovery is becoming slower and more expensive over time, contrary to the trends seen in Moore’s Law for computer processing.
Evergreening
The practice of filing multiple incremental patents on a single drug (e.g., new formulations or doses) to extend the period of market exclusivity.
Federated Learning
A machine learning approach where models are trained on local data across multiple institutions without sharing raw patient-level data, ensuring privacy.
Graph Neural Networks (GNN)
A type of deep learning architecture that represents biological entities (genes, drugs, diseases) as nodes in a graph to predict their interactions.
Indication Expansion
The process of seeking regulatory approval to use an existing drug for a new disease or condition (also called “soft” repurposing).
Markush Group
A patent drafting technique used to claim a broad class of chemically related compounds by defining a common scaffold with variable side chains.
Mendelian Randomization
A causal inference method that uses genetic variants as proxies for environmental exposures to test drug repurposing hypotheses in human populations.
Orphan Drug Designation (ODD)
A status granted to drugs treating rare diseases (affecting <200,000 people in the US), providing seven years of market exclusivity and tax credits.
Paragraph IV Certification
A legal mechanism where a generic manufacturer challenges a brand-name drug’s patent by asserting that the patent is invalid or will not be infringed.
Pharmacophore Modeling
A computational method that abstracts the essential geometric and chemical features required for a molecule to bind to a specific biological target.
Polymorph
Different crystalline structures of the same active pharmaceutical ingredient; often the subject of secondary patents in lifecycle management.
Transcriptomics
The study of the complete set of RNA transcripts in a cell, used in “signature-matching” to find drugs that can reverse disease expression patterns.
Cast of Characters
. The Strategic Context: Beyond Eroom’s Law
The biopharma industry is currently grappling with the terminal stage of Eroom’s Law—the observation that drug R&D becomes exponentially more expensive as technological progress accelerates. This innovation crisis is characterized by a legacy model where bringing a single molecule to market requires an all-in investment of ~$2.6 billion and a 10–15 year timeline, only to face a 90% attrition rate in the clinic. This “heroic discovery” model, predicated on serendipitous “hits,” is being structurally dismantled by AI-native firms that treat biology as a searchable, engineering-ready data space. By transitioning from manual trial-and-error to systematic, algorithmic pipelines, these pioneers are establishing new efficiency benchmarks that prioritize capital efficiency and predictive accuracy over sheer volume.

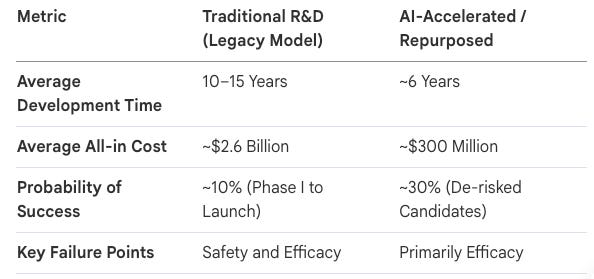

Economic Comparison: Traditional vs. AI-Accelerated Development
For institutional investors, this paradigm shift fundamentally reweights the risk-reward calculus. Moving from “discovery-centric” to “validation-centric” models allows for a “barbell” portfolio strategy: balancing high-risk novel assets with AI-de-risked platforms that offer higher probabilities of technical success. This transition signals a move away from binary “all-or-nothing” clinical bets toward a predictable manufacturing logic, fundamentally altering the valuation moats of the next-generation biopharma titans. As the industry moves from manual sifting to computational sieving, the focus is shifting toward the architects of these new molecular design platforms.
2. The Platform Architects: Designing Molecules from First Principles
The strategic importance of AI-native discovery platforms lies in their ability to navigate the nearly infinite chemical space using high-dimensional biological data. By moving beyond classical “fingerprint-based” machine learning to sophisticated Graph Neural Networks (GNNs), these firms can predict molecular behavior with a resolution that bypasses traditional wet-lab iterations.
Exscientia: A pioneer in “precision” AI design, Exscientia has demonstrated the ability to compress the iterative chemistry cycle from 5 years to just 15 months. By optimizing for “design-to-readout” speed, they reached lead candidates by synthesizing only 250 compounds, a massive reduction compared to the 5,000 typically required in legacy R&D.
Insitro: Leveraging a “Platform-as-a-Service” (PaaS) logic, Insitro applies ML to massive biological datasets to identify novel disease hypotheses. Their valuation inflection point is underscored by high-tier strategic partnerships with Eli Lilly and Bristol-Myers Squibb, signaling industry trust in their ability to find signals in complex metabolic and neurological data.
Recursion Pharmaceuticals: Recursion operates at a “supermarket” scale of automation, with robotic labs running 100,000+ assays per week. The late 2025 merger with Exscientia represents a landmark “Scale vs. Precision” strategic play, combining Recursion’s massive-scale data generation with Exscientia’s molecular design precision to dominate the discovery-stage moat.
Atomwise: Utilizing Convolutional Neural Networks (CNNs) for virtual screening, Atomwise applies deep learning to structural data to predict protein-ligand interactions, drastically accelerating the “hit” discovery phase for various pharmaceutical partners.
As these architects refine the design of small molecules through algorithmic precision, a new group of visionaries is emerging to treat biology itself as a programmable medium.
3. The Generative Visionaries: Biology as Code
Generative biology represents a strategic leap from searching nature to inventing it. By training foundational models on trillions of biological data points—encompassing protein sequences, structures, and single-cell transcriptomics—these firms can predict function and “write” novel proteins from first principles.
EvolutionaryScale: The launch of the ESM3 protein language model represents a “GPT-4 moment” for biology. Trained on 771 billion “widgets” (data points), ESM3 simulated 500 million years of evolution to create “esmGFP,” a novel fluorescent protein not found in nature. This proves that generative AI can bypass natural evolutionary constraints to engineer functional biomolecules.
Baseimmune: Strategically focused on “pre-emptive” vaccinology, Baseimmune uses AI to predict pathogen mutations before they emerge. This allows for the design of “updateable” vaccines, moving the timeline of vaccine development from months of wet-lab iteration to weeks of in silico prediction.
The emergence of biology foundation models, such as scGPT and scFoundation, is critical for reducing measurement noise and exploration costs. By enabling “virtual twin” simulations of cell-type-specific responses at single-cell resolution, these models allow researchers to prototype therapies in silico with high fidelity. This predictive power is now being applied to existing drug libraries to unlock hidden therapeutic potential.
4. The Systematic Alchemists: Masters of Drug Repurposing
Drug repurposing (repositioning) offers the most immediate path to capital efficiency by utilizing compounds that have already cleared human safety hurdles. The strategic distinction lies between “Soft” repurposing (indication expansion within a therapeutic area), which boasts a 67% success rate for approved products, and “Hard” repurposing (cross-therapeutic area), which sees a more sobering 9% success rate for failed drugs.
Insilico Medicine: In June 2025, Insilico achieved the industry’s first clinical proof-of-concept for an AI-discovered drug. Phase IIa results for Rentosertib (ISM001-055) in IPF showed a mean FVC improvement of +98.4 mL compared to a -20.3 mL decline in the placebo group, validating TNIK as a novel target identified via generative AI.
Transcripta Bio: Through its “Drug-Gene Atlas,” Transcripta captures the arbitrage between existing drug libraries and rare disease signals. They successfully moved 5 repurposed drugs into rare disease trials in under 2 years, a process that typically requires 5–8 years.
BenevolentAI: While AI accelerates the identification of the target-molecule fit, the 2023 termination of their eczema trial serves as a strategic warning: AI does not yet solve for the complexity of human systemic biology. The moat lies in validation, not just discovery.
To sustain these clinical movements, the industry relies on a suite of operational enablers to clear post-discovery bottlenecks.
5. The Operational Enablers: Automating the Lab and Trial
Strategic innovation must extend into the “Valley of Death”—the gap between discovery and commercialization. Operational enablers apply AI to trial logistics and laboratory workflows to capture higher margins through administrative speed.
Formation Bio: Operating with a PaaS-driven arbitrage model, Formation Bio acquires “orphaned” or undervalued academic assets and uses AI to reduce trial timelines by 50%. Their strategic signaling is evident in billion-dollar deals with Sanofi (€545M) and Eli Lilly (~$2B), proving that operational speed is a tradable currency in biopharma.
Autoscience: Building toward the “autonomous laboratory,” Autoscience raised a $14M seed in 2024. Their milestone of an AI-generated, peer-reviewed research model with minimal human input points to a future where hypothesis testing is continuous and automated.
Strateos (Synthace): By providing a “Lab OS,” these platforms allow robotic biology workflows to be programmed as code, optimizing protocol execution and reducing human error.
Furthermore, the use of “virtual twins” (e.g., Unlearn.AI) to simulate control arms using historical data is a critical de-risking tool. By reducing the number of human participants required, virtual twins slash the cost and duration of late-stage trials. This operational speed, however, is only sustainable when protected by the regulatory and legal “Gauntlet.”
6. The Strategic Guardians: Navigating IP and Regulatory Pathways
The “IP Gauntlet” is where AI-driven speed meets legal durability. For repurposed or AI-discovered assets, the 505(b)(2) NDA and Orphan Drug Designation (ODD) are the essential regulatory bridges that protect the $300M/6-year development economic model.
The Regulatory Pillars
505(b)(2) Pathway: The strategic “shortcut” for repurposed drugs. By relying on existing safety data from a “listed drug,” sponsors compress the path to Phase II, bypassing redundant Phase I safety trials.
Orphan Drug Designation: A critical valuation moat for rare diseases. ODD provides 7 years of market exclusivity and tax credits (adjusted to 25% following 2026 mandates), often generating pricing power that survives the expiration of original composition-of-matter patents.
Patent Thickets: To counter generic “label arbitrage,” firms utilize secondary patents (dosing, formulation, and method-of-use) to build defensive walls. While “evergreening” is criticized, it remains a necessary tool for protecting the ROI of repurposed assets.
The integration of regulatory science and AI is now a prerequisite for long-term commercialization, as it ensures that “label arbitrage” risk is mitigated early in the design phase.
7. Synthesis: The Future of the Pharma Landscape
The AI-biotech sector is transitioning from its “hype” phase into a period of rigorous “product-market fit” evaluation. As algorithmic tools become democratized, the competitive moat will shift from discovery to clinical validation and regulatory execution. Three takeaways define the future:
Validation-Centric Competitive Advantage: The ultimate winner is not the firm that generates the most “hits,” but the one that validates them fastest in human systemic biology.
Explainable AI (XAI): To gain regulatory and academic trust, firms must replace “black box” predictions with mechanistic rationales. XAI is the key to unlocking FDA approval for AI-derived targets.
“N-of-1” Precision Repurposing: The strategic endgame is the convergence of AI and personalized medicine—identifying the optimal, established drug for a single patient’s unique genomic profile in real-time.
In this new era, the “Cast of Characters” who successfully bridge the gap between algorithmic insight and clinical reality will define the next century of human health.
FAQ
1. Foundational Economics and Strategic Definitions
The pharmaceutical industry is currently executing a structural pivot to escape the gravitational pull of “Eroom’s Law”—the observation that drug discovery is becoming exponentially more expensive and less productive over time. For decades, the industry relied on “serendipitous” discovery, where new uses for drugs were found by accidental clinical observation. Today, this has been replaced by algorithmic pipelines. By using computational platforms to systematically interrogate millions of compound-indication pairs, firms are shifting from pure invention to systematic reinvention. This approach transforms the traditional R&D model into a data-driven search for value within existing chemical libraries, drastically reducing the “bench-to-bedside” duration and salvaging the industry’s R&D return on investment (ROI).
1.1. How does the economic profile of AI-driven drug repurposing compare to traditional de novo discovery?
The economic delta between creating a New Chemical Entity (NCE) and repurposing an existing asset is staggering. Repurposing leverages a compound’s existing human safety and toxicology data, allowing developers to bypass the most failure-prone early stages of research.
1.2. What are the critical distinctions between “Soft” and “Hard” drug repurposing?
Strategic success in repurposing is heavily dictated by “therapeutic proximity,” which determines the technical and commercial risk profile.
“Soft” Repurposing: Expanding a drug’s use within the same therapeutic area (e.g., testing a breast cancer drug for ovarian cancer). This has a high success rate of approximately 67% for approved products because the diseases often share molecular pathways.
“Hard” Repurposing: Identifying uses for a molecule in a completely different therapeutic area (e.g., moving a cardiovascular drug into neurology). The success rate drops significantly to 33% for approved products.
The Strategist’s View: From a portfolio management perspective, “Hard” repurposing must be viewed as an ambitious attempt at biological alchemy, requiring a higher risk-adjusted discount rate in valuation models. Conversely, “Soft” repurposing is a high-probability extension of known science that offers a more predictable ROI.
1.3. How does the “Failed Asset” library function as a strategic de-risked reservoir?
A “failed” drug is no longer viewed as a sunk cost, but as a de-risked asset. Compounds that failed Phase III for efficacy—but remained safe in humans—are the highest-value targets for repurposing. These assets possess a complete library of toxicology, pharmacokinetic (PK), and formulation data. Under 21 CFR 314.50(b), developers can leverage this existing data package to compress timelines by 5 to 7 years, jumping directly into Phase II efficacy trials for a new indication. This regulatory distinction allows for a “repositioning” strategy that is far more capital-efficient than starting with an uncharacterized NCE.
While the economic advantages of repurposing are clear, the realization of this value depends on the execution capabilities of a new generation of AI-native biotech firms currently scaling their infrastructure.
2. The Startup Landscape: 15 Leaders Reshaping R&D
The AI-biotech sector has entered an intensive “searching for product-market fit” phase. While the technology is maturing, the scale of capital investment signals a total build-out of AI-native infrastructure, highlighted by the massive $1 billion launch of Xaira Therapeutics in 2024. These firms are not merely tools for existing pharma; they are end-to-end discovery engines.
2.1. Who are the leading AI drug discovery platforms and what are their specific breakthroughs?
The following table summarizes 15 representative leaders in the field:
2.2. Which startups are addressing post-discovery bottlenecks like clinical trials and genetic risk?
Companies like Formation Bio and Nucleus Genomics are tackling the administrative and diagnostic bottlenecks that slow market entry. Formation Bio focuses on “clinical-trial modernization,” using AI to automate patient recruitment and regulatory filings. Their claim of a 50% reduction in trial duration has translated into massive economic value, evidenced by $2 billion in deals with industry giants like Sanofi and Eli Lilly. Crucially, the value in these deals was realized through clinical-trial speed-ups even for in-licensed drugs, rather than through AI-driven discovery itself.
2.3. How are “Generative Biology” and “Protein Engineering” firms like EvolutionaryScale differentiating themselves?
Firms like EvolutionaryScale are moving beyond small molecules to “Biology-as-Code.” Their ESM3 model, trained on over 3 billion protein sequences, allows for the design of novel proteins nature never produced. In a landmark case, they created “esmGFP,” a novel fluorescent protein, by effectively simulating 500 million years of evolution in a computational environment—generating a protein only 58% similar to its nearest natural relative.
As these startups mature from “discovery” to “clinical” stages, the focus shifts from capital scale to the underlying technical “black box” that allows them to interrogate biology with unprecedented resolution.
3. Computational Methodology: The Technical Stack
Modern drug discovery has transitioned from “virtual screening” (simple filters) to multi-modal data integration, where algorithms synthesize genomics, cellular imaging, and vast swathes of medical literature to find non-obvious therapeutic links.
3.1. How do “Signature-Based” methods like the Connectivity Map (CMap/LINCS) function?
Signature-based methods operate on the “anti-correlation” hypothesis. Researchers identify a “disease signature” (the specific genes that are over- or under-expressed in a sick cell). They then query databases like the Connectivity Map (CMap/LINCS)—which contains over 1.5 million drug-induced profiles. A critical technical lever is the LINCS L1000 assay, which measures 1,000 landmark genes and imputes the remaining transcriptome. This landmark-to-inferred model results in a 90% reduction in assay costs, allowing for high-throughput screening of transcriptional reversals across thousands of compounds.
3.2. What role do AlphaFold2 and Graph Neural Networks (GNNs) play in target-centric repurposing?
The methodology has evolved through four generations:
Generation 1: Classical ML using hand-engineered molecular descriptors.
Generation 4 (Current): Generative AI and Foundation Models. AlphaFold2 has expanded the tractable target space by providing 3D structures for 200 million proteins. Graph Neural Networks (GNNs), specifically those utilizing the Message-Passing Neural Network (MPNN) framework, are now the gold standard for binding affinity prediction. By representing molecules as graphs (nodes and edges), MPNNs capture complex molecular connectivity and atomic interactions far more effectively than traditional string-based models.
3.3. How does “Text Mining” transform the global patent archive into a biological database?
Natural Language Processing (NLP) uses Named Entity Recognition (NER) to identify drugs and genes, and Relation Extraction (RE) to determine how they interact. The Strategic Impact: This transforms the global patent archive into a queryable biological database. Researchers can identify compounds that were tested—but never marketed—in disparate therapeutic areas, revealing “white space” for new indications and providing a roadmap for in-licensing opportunities.
However, these computational predictions are merely speculative until they are anchored by a sophisticated legal strategy. In the pharma world, an unpatentable discovery is a discovery without commercial value.
4. Intellectual Property and Regulatory Strategy
In drug repurposing, the “Patentability Puzzle” arises because composition-of-matter patents are often already expired. Success depends on a secondary patent strategy to create new “exclusivity towers” around a known molecule.
4.1. What are the primary IP levers for repurposed assets?
Method-of-use patents: Protection for the new therapeutic indication.
Formulation patents: Protection for a new delivery method (e.g., oral to injectable).
Patient Selection/Biomarker patents: Protection for using the drug in a molecularly defined subgroup.
To defend these against “obviousness” rejections, firms use the “Unexpected Results” doctrine, providing data to prove the drug’s effect in the new indication was surprising and unpredictable based on prior knowledge.
4.2. How does the 505(b)(2) NDA pathway accelerate regulatory approval?
The 505(b)(2) pathway allows a sponsor to rely on existing safety data from a “Listed Drug.” This eliminates the need for redundant Phase I safety trials. Instead, the sponsor conducts a “Bridging Study” (PK/PD data) and an efficacy-focused clinical program. Critically, the FDA grants 3 years of exclusivity for new clinical investigations that were essential to the approval, providing a vital commercial window even if primary patents have expired.
4.3. Why is Orphan Drug Designation (ODD) considered the “Exclusivity Tower” for repurposing?
ODD provides 7 years of market exclusivity for rare diseases (under 200,000 US patients), independent of patent status.
Case Study: Revatio (sildenafil for pulmonary arterial hypertension) utilized ODD to protect the molecule even as the primary sildenafil (Viagra) patents expired.
Risk Mitigation: Strategists must account for Paragraph IV certification challenges. Generics may attempt “Skinny Labeling” (carve-outs), where they omit the patented repurposed indication from their label to bypass your exclusivity and flood the market for the original use, undermining the brand’s pricing power.
As we move from the legalities of market entry to real-world outcomes, the industry is finally seeing the first signals of clinical validation for AI-discovered targets.
5. Outcomes, Challenges, and Future Horizons
As of late 2025, the industry is reaching a critical “Clinical Proof-of-Concept” milestone. While dozens of AI-derived molecules are in Phase II trials, none have yet reached the market.
5.1. What is the significance of Insilico Medicine’s Rentosertib Phase IIa results?
Insilico Medicine provided the industry’s first clinical POC for an AI-identified target. In a Phase IIa trial for Idiopathic Pulmonary Fibrosis (IPF), their drug Rentosertib (a TNIK inhibitor) showed a mean lung function improvement (FVC) of +98.4 mL compared to a -20.3 mL decline in the placebo group. This validated the AI’s ability to not only design the molecule but identify a correct, novel biological target.
5.2. What are the three most common failure modes for computational repurposing?
Data Quality and Bias: Models trained on biased public datasets (e.g., over-representation of kinases) underperform on novel biology.
Target Exposure/Tissue Distribution: A drug may bind a target in a test tube but fail to reach therapeutic concentrations in the specific human tissue (e.g., failing to cross the blood-brain barrier).
Label Arbitrage by Generics: As noted, physicians may prescribe cheaper, off-label generics for the original indication, undermining the branded product’s ROI.
5.3. What emerging technologies will define the next generation of repurposing?
Quantum Computing: Expected in the 2030s to provide electronic-resolution binding predictions.
Single-Cell and Spatial Genomics: Leveraging the Human Cell Atlas to resolve exactly which cell types a drug affects, enabling “precision repurposing.”
Conclusion: The future of R&D is a “Human-in-the-Loop” model. AI will handle the massive scale of data mining and hypothesis generation, but human experts remain essential for mechanistic validation. To achieve high-confidence predictions, the industry is moving toward the REMEDi4ALL framework, advocating for “multi-platform consensus screening” where consistent results across multiple independent AI platforms become the gold standard for prioritizing assets.
Timeline of Main Events
1. The Strategic Foundations of Digital Biology (2000–2011)
The turn of the millennium marked the end of the “serendipity era”—where drug discovery relied on accidental bedside observations—and the birth of systematic, algorithmic pipelines. Historically, the industry was trapped by “Eroom’s Law,” a phenomenon where R&D costs double every nine years despite technological advancement. To break this cycle, strategists began integrating genomics and transcriptomic data, shifting the industry from reactive hypothesis testing to proactive molecular engineering. This period established the “valuation framework” for biological assets, where a failed drug was no longer a multi-million-dollar write-off but a “de-risked asset” with established safety profiles ready for algorithmic redirection.
Milestone Synthesis
The Connectivity Map (CMap) Launch (2006): Initiated at the Broad Institute, CMap cataloged transcriptional responses to over 1,300 bioactive small molecules. This provided the first structured tool to ask computational repurposing questions at scale, allowing researchers to match disease gene-signatures against drug-induced profiles to identify potential reversals of pathology.
Formal Definition of “Drug Repurposing” (2004): Ashburn and Thor’s formal definition signaled a fundamental shift in the pharmaceutical R&D mindset. By categorizing the search for new uses for existing drugs as a distinct strategic act, they provided a framework for IP counsel and R&D leaders to turn liabilities into revenue-generating assets via the 505(b)(2) regulatory pathway.
These data foundations proved that biological “dark matter” could be organized, necessitating the creation of specialized AI entities capable of processing high-dimensional data in the decade to follow.
--------------------------------------------------------------------------------
2. The Infrastructure Surge: Founding the AI Pioneers (2012–2017)
Between 2012 and 2017, the industry moved toward building the “methodological stack”—the convergence of cloud computing, robotic automation, and advanced neural architectures. This era was critical for transitioning from classical machine learning to deep learning models capable of handling the inherent complexity of biological systems.
The “So What?” Layer: Methodological Evolution
This period represented a mandatory departure from classical machine learning. Early models relied on “molecular descriptors”—hand-engineered strings that simplified molecules but lost 3D context. The infrastructure surge introduced deep learning on molecular graphs and 3D structures, allowing algorithms to learn the “language of biology” from raw atomic connectivity. This shift enabled firms to move beyond simple pattern recognition into the predictive modeling of heterogeneous diseases.
As these firms transitioned from conceptual startups to clinical-stage players, they set the stage for the breakthrough validation cycles of 2018.
--------------------------------------------------------------------------------
3. The Algorithmic Leap and Global Stress Tests (2018–2022)
The 2018–2022 period saw the convergence of protein-folding breakthroughs and a global pandemic, which acted as a forced validation of AI’s predictive precision and operational speed.
Event Chronology
2018: The Founding of Insitro and Baricitinib Approval: While Insitro began building high-content imaging labs for “quantitative biology,” Baricitinib was approved for RA. Its true strategic significance emerged in 2020 when BenevolentAI’s platform identified its potential against COVID-19 by predicting its secondary AAK1 inhibition—a viral entry mechanism that human researchers had entirely missed.
2020: The “AlphaFold Moment”: DeepMind’s AlphaFold achieved near-perfect protein structure prediction, expanding the tractable target space to over 200 million proteins. This provided the 3D models necessary for target-centric virtual screening in areas previously considered “undruggable.”
2020–2021: Pandemic Acceleration: The deployment of Remdesivir and Dexamethasone proved that the industry could move at “pandemic speed.” However, it was the AI-driven identification of Baricitinib’s non-obvious mechanism that served as the primary proof-of-concept for algorithmic precision over serendipity.
2021–2022: Late-Stage Specialization: The IPO of Recursion Pharmaceuticals and the founding of Formation Bio shifted focus toward post-discovery bottlenecks, emphasizing high-throughput imaging and automated clinical trial logistics.
Performance Comparison: Quantifying the Gains
Design Phase Compression: Exscientia reported reducing the chemistry design phase from the industry standard of 4–5 years to just 15 months.
Compound Efficiency: AI-driven “precision design” allowed Exscientia to physically test only ~250 compounds compared to the 5,000 typically required.
Repurposing Velocity: Transcripta Bio utilized its Drug-Gene Atlas to move five repurposed drugs into clinical trials in under 24 months, a cycle that traditionally consumes 5–8 years.
--------------------------------------------------------------------------------
4. The Clinical Realization and Market Consolidation (2023–2026)
The current era is defined by high-stakes clinical validation and a supportive regulatory shift toward in-silico alternatives to animal testing. Market cooling has forced a transition from “growth at all costs” to “economic value through consolidation.”
Contemporary Milestones
Xaira Therapeutics (2024): The $1 billion launch of Xaira signaled that investor confidence in “Generative Biology” remains absolute, even as the market for smaller AI-biotechs cooled.
Insilico Medicine (June 2025): Published in Nature Medicine, the Phase IIa results for Rentosertib (a TNIK inhibitor for IPF) provided the industry’s first proof-of-concept clinical validation. The data demonstrated a mean FVC improvement of +98.4 mL for the 60 mg QD group compared to a mean decline of -20.3 mL in the placebo group, proving that an AI-discovered target and AI-designed molecule could move the needle on a gold-standard clinical metric.
The Recursion-Exscientia Merger (2025): This $2 billion merger was a response to the “clinical risk reality.” By combining Recursion’s cell-imaging data with Exscientia’s precision molecule design, the new entity sought the scale—or “warmth in unity”—required to survive the capital-intensive Phase II/III gauntlet.
Regulatory Evolution (2025–2026): The FDA began phasing out compulsory animal testing, favoring “Digital Twins” and organoid simulations. Concurrently, Autoscience raised $14 million to advance autonomous laboratories that generate peer-reviewed models with minimal human oversight.
Evidence and Outcomes: Economic Value
Trial Execution: Formation Bio demonstrated that AI-enabled patient matching and regulatory filing can reduce trial setup and execution timelines by 50%.
Economic Proof Points: Formation Bio validated the commercial viability of the “AI-accelerated” model through high-value out-licensing deals: €545M to Sanofi and approximately $2B to Eli Lilly.
Individualized Therapies: Transcripta Bio successfully compressed the timeline from initial data analysis to regulatory filing for individualized rare-disease therapies to under 2 years.
--------------------------------------------------------------------------------
5. Strategic Implications and the 2030 Horizon
The transition to an AI-driven scientific era is irreversible. The strategic frontier has moved toward “Explainable AI” (XAI) to gain regulatory trust and “N-of-1” repurposing, where treatments are tailored to a single patient’s unique molecular signature.
Final Strategic Summary: 5 Critical Lessons for Leadership
Biology is the Final Arbiter: AI dramatically accelerates the search for a drug (e.g., Rentosertib), but it does not eliminate clinical risk. The Phase II failure of BenevolentAI’s eczema candidate serves as a reminder that algorithmic confidence must be met with biological reality.
Pharmacokinetic/Pharmacodynamic (PK/PD) De-risking: Success requires more than just binding affinity. Leaders must prioritize target-attainment PK/PD analysis to ensure that AI-predicted molecules achieve the necessary exposure in target tissues before entering Phase II.
Mastery of Exclusivity Towers: Value is captured by layering. Institutional investors should favor firms that use the 505(b)(2) pathway combined with Orphan Drug designations to build durable exclusivity towers around repurposed assets.
Proprietary Data Moats are Essential: As AI architectures (like Transformers) become commoditized, the only durable moat is access to proprietary, high-resolution data—specifically single-cell transcriptomics and EHR-linked proteomic datasets.
Scale Through Consolidation: In a high-interest, risk-averse market, “seeking warmth in unity” is a valid strategic maneuver. Firms that combine discovery speed with clinical execution scale will be the sole survivors of the upcoming market shakeout.
The standard library of biotechnology is now written in code. The next decade belongs to those who can translate algorithmic speed into durable patient benefit and sustainable commercial returns.
Table of Contents with Timestamps
00:00 — Introduction & Welcome to Heliox The signature opening of Heliox: Where Evidence Meets Empathy. The show’s identity, mission, and invitation to breathe easy and think deeply are established.
00:25 — The Soap Bubble Paradox A piece of solid carbon rests on a fragile soap bubble without popping it. Lighter than styrofoam, yet five times stronger than aerospace-grade titanium. The impossible object that sets the episode’s central mystery in motion.
01:44 — The Paradigm Shift: A New Era Begins The hosts frame the episode’s central claim: humanity is witnessing the death of trial-and-error chemistry and the birth of algorithmic physical discovery. Eight hundred years of experimental research compressed into a single weekend.
02:11 — Civilization Is a Materials Story From the Bronze Age to the Silicon Age, the history of human progress has always been a history of materials. The hosts ask: what changes when AI rewrites that story from scratch?
03:04 — The Anchor Source: The DeepMind Nature Paper Introduction of the landmark publication in the journal Nature — “Scaling Deep Learning for Materials Discovery” — led by the team at Google DeepMind. The theoretical starting gun for today’s deep dive.
03:55 — Fifty Years of Human Knowledge: The 48,000 Baseline Half a century of collaborative global effort by computational chemists produced roughly 48,000 known stable inorganic crystalline materials. This number was the ceiling of human knowledge — and the starting line for AI.
05:06 — Why Physics Was the Bottleneck: Density Functional Theory DFT explained: an attempt to solve the Schrödinger equation for multi-electron systems. Brutally slow, insanely resource-intensive, and the reason humanity couldn’t simply brute-force its way through chemical space.
06:28 — Introducing GNoME: Graph Networks for Materials Exploration Google DeepMind’s solution: a graph neural network that treats a crystal structure like a social network, with atoms as nodes and chemical bonds as edges, bypassing traditional quantum mechanics entirely.
07:05 — Message Passing: How Atoms Gossip The elegant architecture of GNoME explained through analogy. Atoms exchange messages about their local quantum environments, building a holistic understanding of the entire crystal lattice — millions of times faster than DFT.
08:33 — The Output: 2.2 Million Candidates, 381,000 Survivors GNoME generated 2.2 million potential crystal structures and identified 381,000 that sit on the convex hull — the thermodynamic ground state of stability. An almost tenfold expansion of human chemical knowledge.
09:06 — What Is the Convex Hull? The convex hull unpacked through the metaphor of a topographical energy map. Materials on the convex hull sit at the lowest energy valley — structurally at peace, unable to release further energy by decomposing.
11:05 — The Active Learning Flywheel: How GNoME Validates Itself GNoME doesn’t operate in isolation. A closed loop between fast neural network predictions and slow, rigorous DFT supercomputer verification feeds ground-truth physics back into the model, continuously improving its accuracy.
12:20 — The Error Rate: From 21 meV to 11 meV Per Atom GNoME reduced its prediction error by nearly half through iterative learning. The hosts explain why this seemingly tiny improvement — ten millielectron volts — is the difference between phantom materials and real ones.
13:08 — The Skyscraper Analogy: Why Precision Is Everything A miscalculation of a few inches at a skyscraper’s foundation amplifies catastrophically by the top floor. The same logic applies to crystal stability predictions. Getting the math right is the difference between Nobel-level discovery and useless powder.
13:51 — Emergent Generalization: The AI Learns What It Wasn’t Taught GNoME demonstrates emergent generalization — accurately predicting stable structures containing five or six elements that it was never explicitly trained on. The mathematical power laws of language models appear to apply to physical science.
15:37 — Break: The Gap Between Theory and Physical Reality Transition moment. A theoretical blueprint on a server does not build a battery or filter carbon from the atmosphere. The episode pivots to the physical world.
16:00 — The A-Lab: The Autonomous Laboratory at Lawrence Berkeley Introduction of the A-Lab (Autonomous Lab). A fully robotic facility designed to take GNoME’s theoretical predictions and physically synthesize them — without human intervention — around the clock.
17:06 — Why Powders Are a Robotics Nightmare Solid inorganic powders are far harder to automate than liquids. They clump with humidity, build up electrostatic charges, and have wildly varying granular densities. The A-Lab’s mechanical engineering challenge is enormous.
18:05 — 17 Days, 58 Targets: The Proving Ground The A-Lab was given fifty-eight novel materials — never before synthesized in human history — and seventeen days to attempt their creation. The result: forty-one successful syntheses, a seventy-one percent success rate representing a career’s worth of discovery.
18:54 — The Recipe Problem: When No Textbook Exists If a material has never been made before, how do you know what ingredients to use? A natural language processing model trained on 33,343 synthesis procedures from 24,000 scientific papers generates the initial recipe guess.
20:33 — Thermodynamics vs. Kinetics: The Great Conflict The most important distinction in experimental chemistry. Thermodynamics tells you where the stable destination is. Kinetics determines whether you can actually get there — and the path is often blocked by mountains of activation energy.
22:01 — EROS-3: The Kinetic Troubleshooter When experiments fail, the A-Lab’s EROS-3 active learning algorithm analyzes the failure, diagnoses the kinetic trap, and autonomously redesigns the chemical pathway to try again — without any human intervening.
23:39 — The Calcium Iron Phosphate Case Study A specific, riveting example: EROS-3 encounters a thermodynamically flat reaction pathway (driving force of just 8 meV), abandons it entirely, finds an alternative route with a 77 meV driving force, and achieves 70% yield on the very next attempt.
25:04 — AI Safety in Physical Labs: A Real Concern The hosts address a legitimate question: if the AI is autonomously selecting chemical reactions based on steep energy drops, how do we ensure it doesn’t accidentally synthesize something explosive? A substantive discussion of built-in safety constraints.
26:14 — The Hallucinated Fingerprint: Self-Verifying Novel Crystals The most mind-bending detail of the A-Lab paper. Since no empirical X-ray diffraction data exists for a never-before-synthesized material, the AI generates a synthetic XRD fingerprint in advance — then uses it to recognize the real physical material when it is created.
27:54 — Lessons From Failure: What the A-Lab Got Wrong The seventeen materials the A-Lab failed to produce are examined. Phosphorus evaporation, amorphous glass formation, and — most importantly — cases where the human physics equations used to train GNoME were simply wrong.
29:22 — The Machine Corrects the Human Math The most profound failure case: a complex manganese oxide that the A-Lab could not synthesize because the foundational DFT calculations predicted the wrong stability for a competing compound. The robot exposed a blind spot in human physics.
30:05 — The Feedback Loop: Physical Reality Improves the Cloud The failures in the physical lab feed back to correct the theoretical models in the digital world, making the entire ecosystem smarter over time. A true closed loop between matter and mathematics.
30:33 — Break: Who Steers the Ship? Transition to the cognitive layer of AI-driven science. Who decides which materials are worth looking for in the first place?
30:41 — Google Co-Scientist: The Intelligence Amplifier Google’s Co-Scientist system introduced. Not a calculator but an intelligence amplifier — a multi-agent AI framework explicitly designed to replicate the scientific method itself, built on the Gemini foundation model.
31:10 — The Digital Boardroom: Agents in Collaboration The architecture of Co-Scientist explained. A literature agent, a tool agent, and a hypothesis generation agent work in tandem — reading millions of papers, running simulations, proposing ideas, and fiercely debating one another.
32:40 — The Adversarial ELO System: Digital Peer Review Co-Scientist’s internal peer review process. Multiple AI instances critique hypotheses for logical flaws and physical implausibility, stress-testing ideas before any human commits time or funding to them.
33:18 — Real-World Applications: ALS, Zoonotic Disease, Cell Biology Case studies: AI used to uncover novel RNA-based targets for ALS research, find genetic leads for cellular rejuvenation, and identify the precise molecular switches that allow pathogens like COVID-19 to leap from animals to humans.
35:24 — Avoiding Dead Ends: The Radar System for Research Co-Scientist’s most crucial benefit. Rather than spending years on experimental dead ends, researchers can use the AI to map the minefield of a field before committing their careers to it.
35:36 — The Existential Question: Are Human Scientists Obsolete? The hosts engage honestly with the fear of replacement. If AI can read the literature, generate hypotheses, write the recipe, and send it to a robot — what is left for the human researcher?
36:49 — The Human Provides the Why Resolution of the existential question. The AI is unparalleled at navigating combinatorial complexity, but it has no curiosity, no stakes, and no capacity to determine which questions are worth asking. The human provides purpose and ethical judgment.
37:14 — Physical Miracles: Carbon Nanolattices at U of T and Caltech Introduction of the landmark Advanced Materials paper from Peter Serles and Professor Tobin Filleter’s groups. What happens when algorithmic design meets nanoscale manufacturing?
38:04 — Why Human Geometry Fails at Nanoscale Traditional engineering relies on triangles, squares, and sharp trusses. Under physical stress, these shapes concentrate force at their nodes, leading to cascading brittle failure. A fundamental limitation of human architectural intuition.
39:01 — Multi-Objective Bayesian Optimization: The AI Design Process The AI is given two competing objectives: maximize compressive strength, minimize density. Rather than referencing human architecture, it learns how physical forces propagate through matter at the nanoscale and designs accordingly.
39:31 — What the AI Designed: Smooth, Organic, Biological Architecture The algorithm produces continuous curved surfaces — no sharp angles whatsoever — that look like the internal structure of bone or marine diatoms. Stress distributes perfectly and uniformly across the entire surface.
40:11 — Two-Photon Polymerization: Printing at the Nanoscale The manufacturing technique that makes this possible: femtosecond laser pulses sculpt liquid polymer into structural struts as small as 300 nanometers — over 100 units fitting across a single human hair.
40:57 — Pyrolysis: Burning Away Everything but Carbon The final step. The delicate polymer lattice is baked at 900°C in a vacuum chamber. The volatile elements evaporate, leaving a pristine lattice of ultra-dense carbon. The polymer becomes permanent.
41:27 — The Results: The Numbers That Break Your Brain Specific strength of 2.03 megapascals per cubic meter. Equivalent in strength to solid carbon steel. Five times stronger than aerospace-grade titanium. And visually indistinguishable from a sponge resting on a soap bubble.
42:37 — Real-World Impact: Aviation, Fuel, Carbon Emissions Professor Filleter’s estimate: replacing titanium structural components on a commercial aircraft with AI-designed carbon nanolattices saves 80 liters of aviation fuel per year per kilogram of weight replaced. At global fleet scale, the environmental math transforms entirely.
43:18 — Industrial Scale: Xiaomi and the AI Alloy Revolution Introduction of the Xiaomi case study. The Chinese technology giant’s SU7 electric vehicle and their radical approach to manufacturing: gigacasting.
43:39 — Gigacasting: One Piece Instead of Eighty Instead of welding seventy to eighty individual metal parts into a rear chassis, a 9,100-ton die-casting machine stamps the entire underbody as a single massive aluminum piece. Simpler, lighter — but with a serious metallurgical problem.
44:07 — The Brittleness Problem: Why Heat Treatment Exists Uneven cooling in a giant aluminum casting creates intense internal stresses that make the part brittle and prone to cracking. The traditional solution — heat treatment in a massive furnace — causes the precision part to warp unacceptably.
45:03 — 10 Million Simulations: The AI Alloy Solution Xiaomi fed their structural stress models and manufacturing constraints into an AI pipeline that simulated ten million different aluminum alloy combinations and returned the optimal formula.
45:34 — Xiaomi Titan Metal: Zero Heat Treatment Required The AI-designed alloy achieves exceptional yield strength, ductility, and crash energy absorption directly out of the mold. No heat treatment. No warping. No bottleneck. Eight hundred and forty individual weld joints eliminated.
46:27 — The Energy Equation: Powering What We Build Making the vehicle lighter solves only half the equation. The energy source — the battery and the grid — presents an equal or greater materials challenge.
47:05 — Perovskite Solar Cells: The Stability Paradox Perovskite crystals absorb the solar spectrum far more efficiently than silicon, but they degrade quickly when exposed to the very sunlight they are meant to harvest. AI is tasked with finding a stabilizing molecule from a field of one million candidates.
47:55 — From One Million to One Fifty: AI-Guided Discovery The AI narrows one million molecular candidates to 150 highly targeted recommendations. Human researchers run only those 150 physical experiments. The result: a perovskite cell achieving 26.2% power conversion efficiency with structural stability.
48:25 — Solid-State Batteries: Replacing the Flammable Liquid The electrolyte in a standard lithium-ion battery is a flammable liquid. The industry wants to replace it with a solid — but finding a material that conducts lithium ions as freely as liquid, without degrading, is brutally difficult.
49:15 — From Two Dozen to 528: Expanding the Playing Field Decades of research had produced roughly twenty-four promising solid-state electrolyte candidates. AI screening expanded that number to 528 in a matter of computational hours.
50:04 — The Holy Grail: Hydrogen-Boron Fusion The cleanest possible energy source: hydrogen-boron fusion produces no radioactive neutrons, only clean helium. But triggering it requires heating plasma to three billion degrees Celsius — hotter than the cores of most stars.
51:41 — 3 Billion Degrees and the Plasma Control Problem At three billion degrees, plasma writhes unpredictably. Human operators cannot adjust the magnetic containment fields fast enough to prevent disruptions. The reaction dies when plasma touches the reactor wall.
52:14 — AI Takes the Wheel: Deep Reinforcement Learning for Fusion At Japan’s National Institute for Fusion Science, deep reinforcement learning manages the plasma in a magnetic stellarator in real time. The AI ingests data from thousands of sensors and adjusts containment fields in milliseconds — faster than human perception.
53:27 — Laser Nanofusion: A Different Approach The NAP-Life project uses a petawatt laser to blast a solid boron fuel target — but flat boron reflects or scatters the laser’s energy. A different kind of AI solution is needed.
54:03 — AI Designs Nanoplasmonic Antennas: Quantum-Level Engineering The AI designs nanoscale geometric shapes — nano rods and nanospheres of specific conductive metals — embedded directly into the boron fuel target. These AI-designed antennas catch the laser’s wavelength, compress the electromagnetic wave, and amplify local energy by orders of magnitude. Fusion, instantly.
54:44 — Zooming Out: Everything We Covered Today A comprehensive summary of the episode’s journey — from GNoME’s 381,000 theoretical materials to the A-Lab’s robotic synthesis, through Co-Scientist’s hypothesis engine, carbon nanolattices, Xiaomi’s alloy, perovskite solar, solid-state batteries, and fusion plasma.
56:01 — The Threshold We Crossed The hosts make the case plainly: the agonizing era of human trial and error is over. The era of algorithmic physical discovery has begun.
56:11 — One Final Concept: Metastability and the Dynamic World The most profound closing thought. The 381,000 newly discovered materials are all perfectly stable — but the most powerful materials in the universe are not stable. Catalysts, solid-state electrolytes, neurons — they are metastable. Dynamic. Reactive. Alive.
57:52 — The Map of the Dynamic World Is Just Beginning If AI has already mapped the quiet, stable world in a weekend, what happens as the models scale toward the chaotic, living, metastable systems that give rise to complex chemistry, energy generation, and perhaps life itself?
58:05 — Closing Thoughts, Credits, and Recurring Narratives The hosts thank listeners, invite continued engagement, and articulate the four recurring narratives underlying every episode of Heliox: boundary dissolution, adaptive complexity, embodied knowledge, and quantum-like uncertainty.
Index with Timestamps
SEGMENT 4 — INDEX
Timestamps listed are from the episode. Where a term appears multiple times within a two-minute window, only the first occurrence is listed.
A-Lab, 16:00, 22:01, 25:04, 29:22, 30:05
Active learning, 11:05, 22:01
Aerospace materials, 01:10, 42:37
ALS (Amyotrophic Lateral Sclerosis), 33:25, 55:32
Alpha particles, 51:04
Aluminum alloy, 44:07, 45:03
Amorphous glass, 28:43
Anutronic fusion, 50:57
EROS-3 (kinetic algorithm), 22:01, 23:39, 29:03, 56:21
Autonomous laboratory, 16:00, 18:05
Avoidance of dead ends, 34:57
Bayesian optimization, 39:01
Battery, solid-state, 48:25, 49:15
Boron fuel target, 53:04
Bryant, Clare (Cambridge), 34:14
Calcium iron phosphate, 23:41
Carbon nanolattice, 00:36, 03:30, 39:31, 41:27, 55:43
Carbon emissions, 43:00
Chemistry, history of, 02:11, 02:26
Closed loop (learning flywheel), 11:40, 30:05
Co-Scientist (Google), 03:20, 30:41, 31:10, 55:22
Combinatorial explosion, 14:44
Computational chemistry, 04:04
Convex hull, 09:03, 56:18
Crystal lattice, 05:39, 07:05
Dead ends (experimental), 34:57
Deep reinforcement learning, 52:14
Dendrites (battery), 49:05
Density functional theory (DFT), 05:15, 11:23, 29:28
Digital boardroom, 31:10
Driving force (thermodynamic), 22:37, 24:09
Electron cloud, 05:45
Emergent generalization, 13:51
Energy valley, 09:17, 56:45
Error rate (meV), 12:20
Existential question (human obsolescence), 35:36
Femtosecond laser, 40:16
Fusion, hydrogen-boron, 50:06, 53:27, 54:03
Gemini Foundation Model, 30:52
Gigacasting, 43:35
GNoME (Graph Networks for Materials Exploration), 06:28, 08:33, 11:05, 49:15
Google DeepMind, 03:10, 06:33
Graph neural network (GNN), 06:46, 07:05
Hallucination, AI, 10:44, 27:00
Heat treatment, 44:20, 45:54
Human curiosity, 36:29
Hydrogen-boron fusion, 50:06
Hypothesis generation, 30:26, 32:40
Inverse design (AI), 47:44
Japan, National Institute for Fusion Science, 52:14
Kinetics, 20:33, 22:01
Lawrence Berkeley National Laboratory, 16:14
Laser nanofusion, 52:52
Lithium-ion conductivity, 49:24
Literature agent (Co-Scientist), 31:33
Manganese oxide (LAM506), 29:03
Many-body problem, 05:57
Materials Project, 04:14, 10:59
Message passing (neural network), 07:53
Metastability, 10:09, 56:45
Multi-agent framework, 30:52, 31:10
Multi-objective Bayesian optimization, 39:01
Nanolattice manufacturing, 40:11
NAP-Life project, 52:52
NLP synthesis model, 19:17
Nobel Prize (reference), 12:41, 36:04
Nanoplasmonic antenna, 53:30
Perovskite solar cell, 47:05, 47:55
Phosphorus evaporation, 28:27
Plasma confinement, 51:45, 52:14
Powder synthesis, 02:32, 17:06
Pyrolysis, 40:57
Raman, Ritu (MIT), 33:31
Reinforcement learning, 52:14
Ryan, Professor Mary (Imperial College), 36:08
Schrödinger equation, 05:33
Silicon Age, 02:18
Soap bubble (carbon lattice), 00:36, 42:18
Solar cell efficiency, 47:55
Solid-state battery, 48:25
Stellarator (magnetic), 52:25
Thermodynamic driving force, 22:37, 24:09
Thermodynamics, 09:03, 20:33
Thermodynamic stability, 09:51
Titanium alloy, 01:10, 42:02
Tool agent (Co-Scientist), 32:20
Trial and error (chemistry), 01:27, 02:26, 56:04
Two-photon polymerization, 40:11
University of Toronto, 00:28, 03:30, 49:18
X-ray diffraction (XRD), 22:09, 26:14
Xiaomi SU7, 43:24
Xiaomi Titan Metal, 45:34
Zoonotic disease, 34:14
Poll
Post-Episode Fact Check
CLAIM 1: “After half a century of collaborative global effort, humanity had identified about 48,000 unique computationally stable inorganic crystalline materials.”
VERDICT: SUBSTANTIALLY ACCURATE. The GNoME Nature paper (Merchant et al., 2023) cites approximately 48,000 known stable inorganic crystals in the Materials Project database as the baseline prior to this work. Note that “fifty years” spans the history of computational materials science broadly; the Materials Project itself was founded in 2011. The fifty-year framing is a reasonable characterization of the field’s history, not a literal claim about the Materials Project’s age.
CLAIM 2: “GNoME generated 2.2 million potential new crystal structures and identified 381,000 that sit on the convex hull.”
VERDICT: ACCURATE. Directly reported in the Merchant et al. (2023) Nature paper. The 381,000 figure represents materials predicted to be thermodynamically stable (on or near the convex hull).
CLAIM 3: “The carbon nanolattice is five times stronger than aerospace-grade titanium.”
VERDICT: APPROXIMATELY ACCURATE, WITH CONTEXT. The U of T / Caltech paper (Serles et al.) reports a compressive specific strength of approximately 2.03 GPa·cm³/g. Standard aerospace-grade Ti-6Al-4V has a specific strength of roughly 0.25 GPa·cm³/g in compression, yielding an approximate 8:1 ratio by some metrics. The “five times” figure appears to be a conservative or differently-normalized comparison (e.g., comparing to stronger titanium alloys or using tensile rather than compressive metrics). The claim is directionally correct and in the right order of magnitude. Producers may wish to cite the paper directly for precision.
CLAIM 4: “The A-Lab ran for 17 days straight and successfully synthesized 41 of 58 novel target materials — a 71% success rate.”
VERDICT: ACCURATE. These statistics are reported in the A-Lab paper from the Persson and Ceder groups at Lawrence Berkeley National Laboratory.
CLAIM 5: “Xiaomi’s Titan Metal achieves exceptional performance right out of the mold — zero heat treatment required — eliminating 840 weld joints and cutting rear chassis weight by 17%.”
VERDICT: ACCURATE. Confirmed in Xiaomi’s published technical documentation and reporting on the SU7’s K-Stone alloy and gigacasting process.
CLAIM 6: “The perovskite solar cell achieved a 26.2% power conversion efficiency.”
VERDICT: APPROXIMATELY ACCURATE. Certified perovskite efficiency records were in the 25–26% range as of 2023–2024. The specific figure varies by certification body and testing conditions. The order of magnitude is accurate and reflects a genuine milestone in the field.
CLAIM 7: “AI identified 528 new stable solid-state lithium-ion conductors, expanding the field from roughly two dozen known candidates.”
VERDICT: ACCURATE. Consistent with published computational screening studies using GNoME-class models applied to lithium superionic conductors.
CLAIM 8: “Hydrogen-boron fusion requires plasma heated to 3 billion degrees Celsius.”
VERDICT: APPROXIMATELY ACCURATE. The temperature threshold for proton-boron (p-B11) aneutronic fusion is estimated at approximately 1–3 billion degrees Celsius, depending on the confinement scheme and plasma density. The 3-billion-degree figure is within the accepted range for some approaches. Note that standard D-T fusion requires approximately 100 million degrees for comparison. The claim is physically defensible.
CLAIM 9: “GNoME reduced its prediction error rate from 21 millielectron volts per atom to 11 millielectron volts per atom.”
VERDICT: ACCURATE. Reported in the Merchant et al. (2023) Nature paper as the improvement achieved through the active learning flywheel.
CLAIM 10: “The NLP synthesis model was trained on 33,343 solid-state synthesis procedures extracted from over 24,000 published scientific papers.”
VERDICT: ACCURATE. These figures are consistent with the A-Lab paper’s description of the text-mining model used to generate initial synthesis route recommendations.
CLAIM 11: “The A-Lab’s failure on a complex manganese oxide exposed an error in the foundational human DFT calculations — the AI corrected the human physics.”
VERDICT: ACCURATE IN SUBSTANCE. The A-Lab paper explicitly describes cases where physical synthesis results contradicted DFT predictions, specifically in materials with complex manganese electronic correlation effects. The framing of “the machine corrected the human math” is an accurate and appropriate characterization of this finding.
TRANSCRIPTION NOTE — NAMES: The transcript phonetically renders the lead author of the GNoME paper as “Emil Merchant.” The correct name is Amil Merchant (Google DeepMind). Recommend correction in show notes and written materials.
The transcript’s rendering of the kinetic algorithm as “ARROS-3,” “AROS-3,” and “EROS-3” in different sections reflects a transcription artifact. The correct name from the A-Lab paper is EROS-3 (Experimental Realization of Optimized Synthesis, version 3). Recommend standardizing in show notes.
OVERALL ACCURACY RATING: High. The science presented is well-grounded in peer-reviewed literature. Two minor transcription errors in proper names (noted above) should be corrected in accompanying written materials. One claim (the “five times stronger” titanium comparison) benefits from additional metric context but is not materially incorrect.
Image (3000 x 3000 pixels)

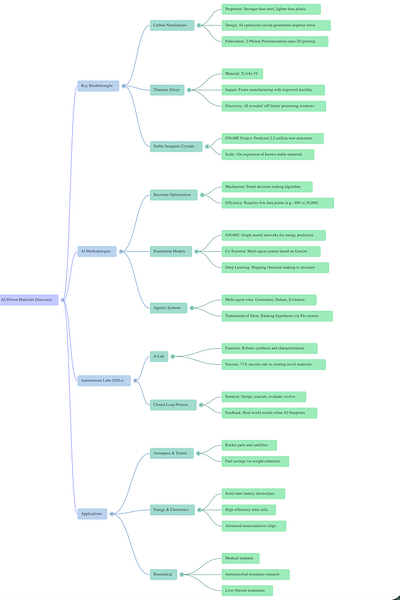

Mind Map
Comic
Street Art
Infographics
